Item
|

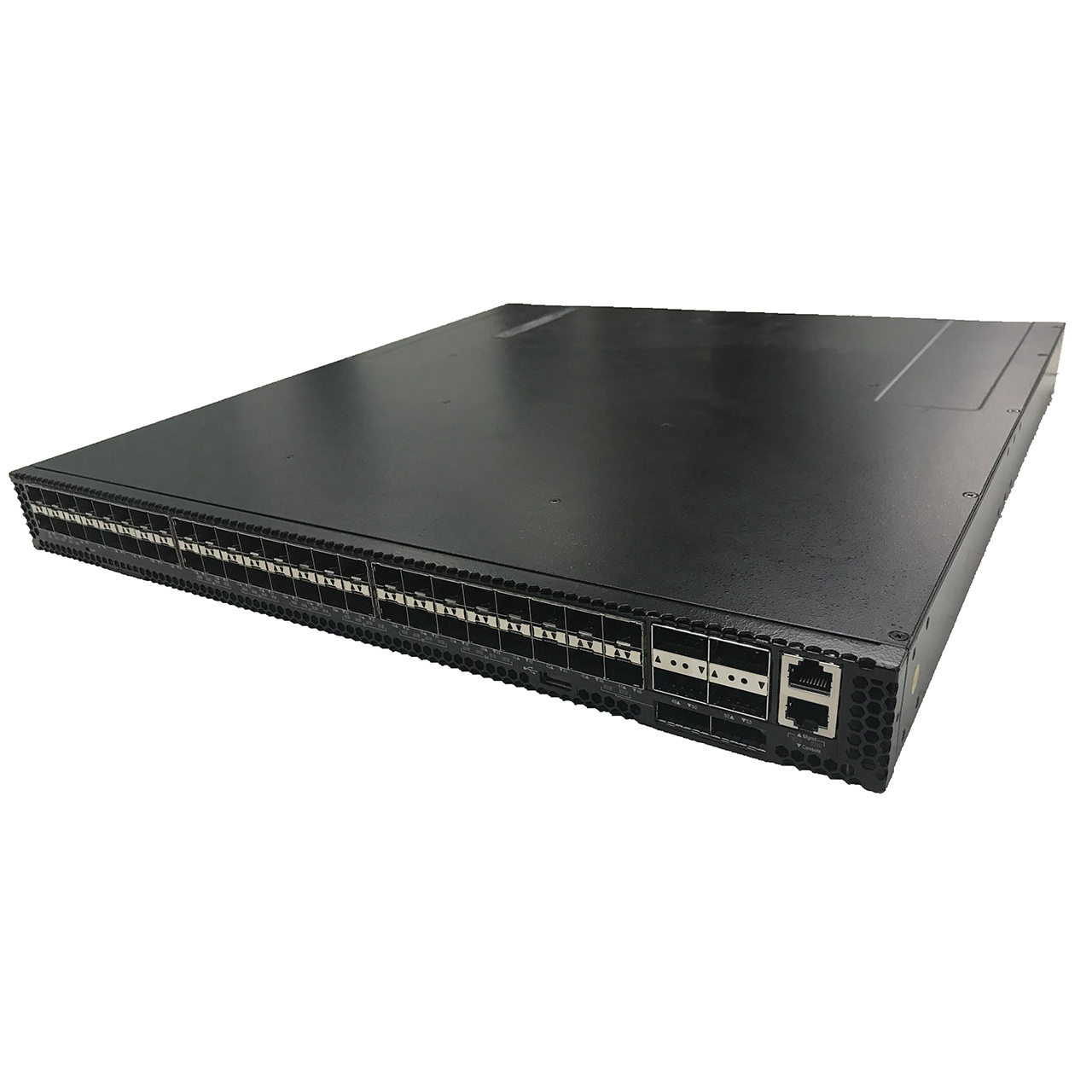

CS6510-48S6Q-HI
|

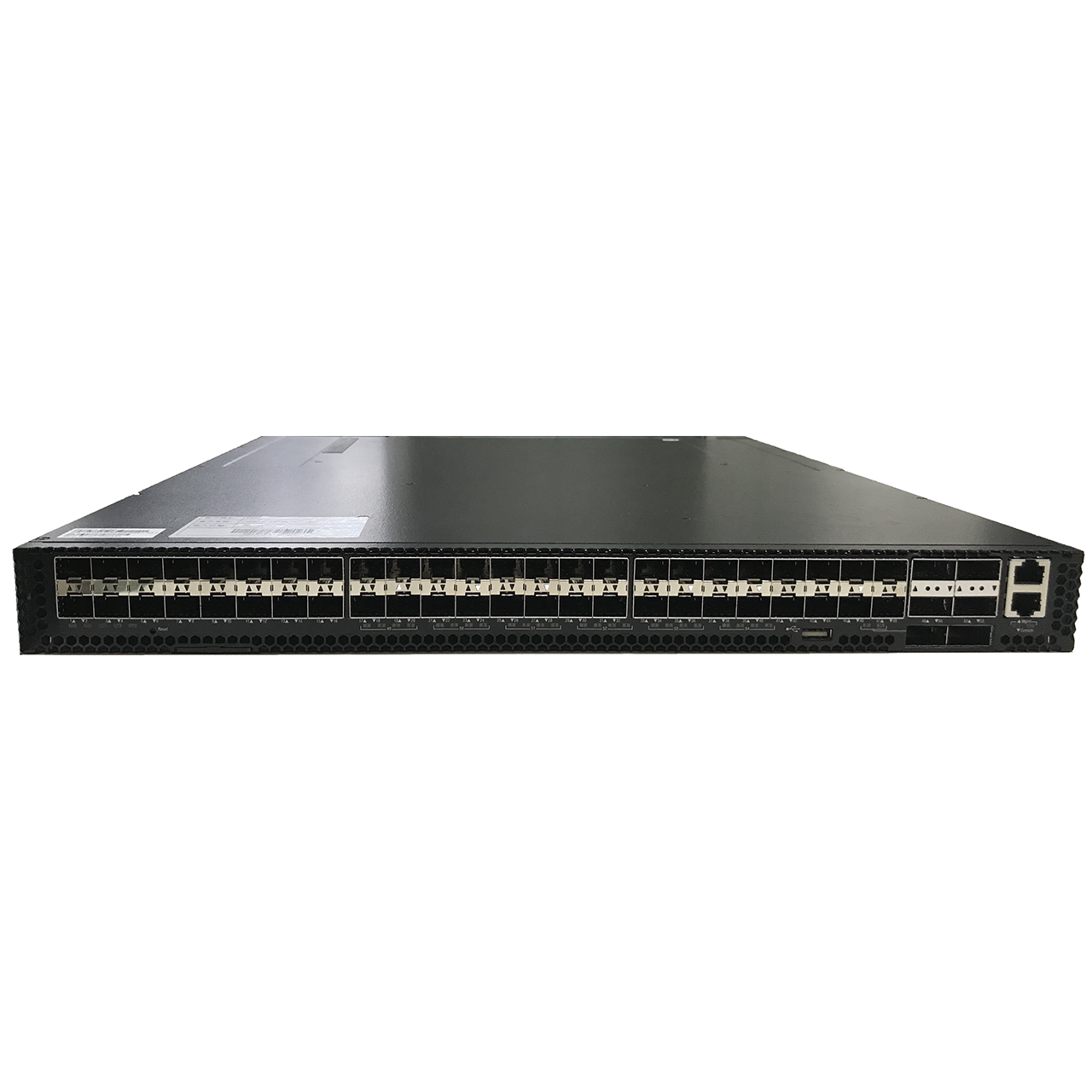

| Physical port |
48 * 10G SFP+ and 6 * 40G QSFP |
| Management port |
Console port RJ4510/100/1000Mbps RJ45 Ethernet Management portUSB2.0 Management port |
| Performance |
| Switching Capacity |
1440Gbps |
| Forwarding Rate |
1071Mpps |
| MAC Address |
96K(standard)/32K(routee)/288K(bridgee), UFT configuration, default is standard
|
| ARP Table |
16K |
| Routing Table |
16K for IPv4, 8K for IPv6 |
| Physical |
| Dimension(W*H*D) |
433.8mm*44mm*550mm |
| Relative Humidity |
10%~90% non-condensing |
| Temperature |
Working 0°C~50°C, storage -40°C~75°C |
| Power Input |
AC: 100~240V,50~60 Hz |

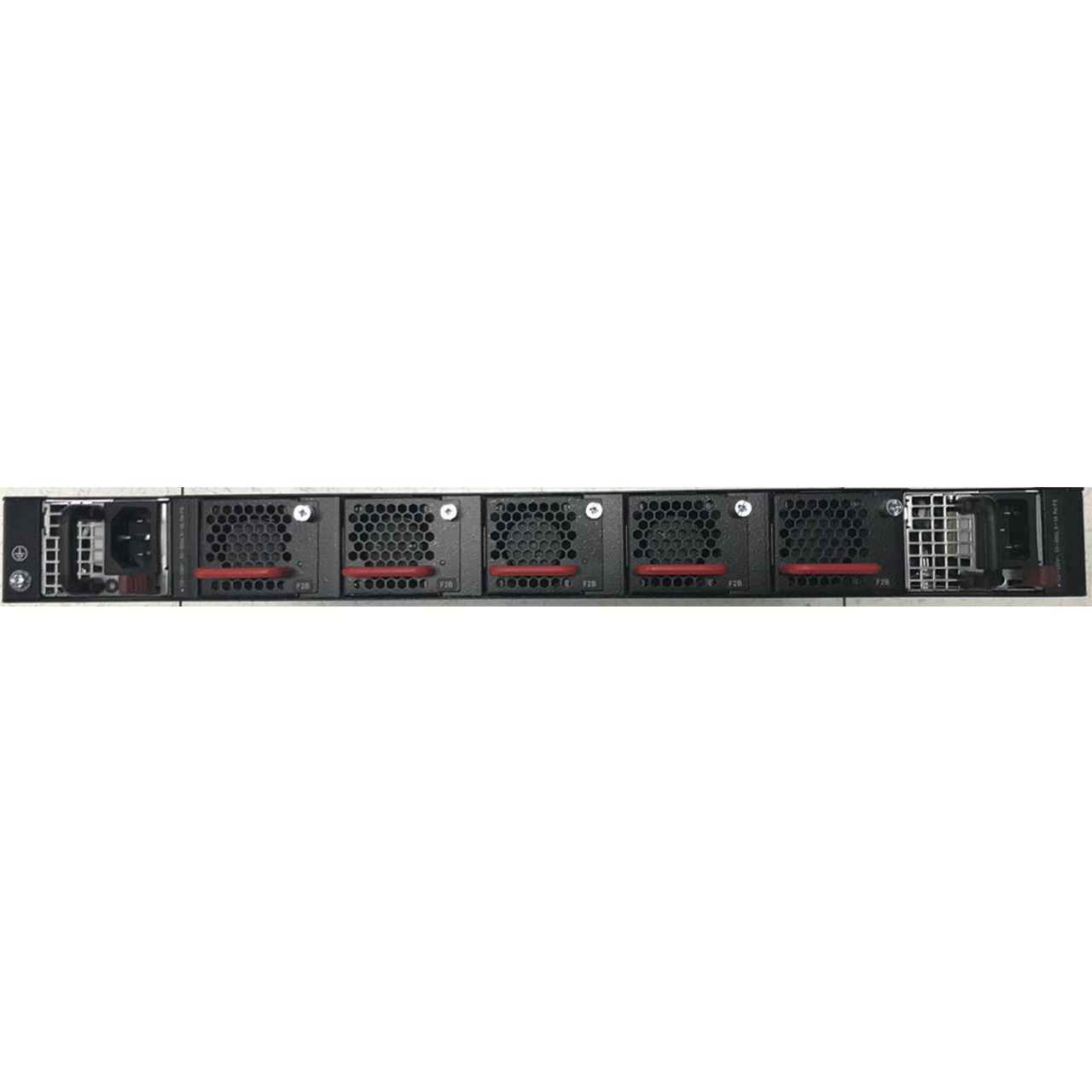

| Power Supply |
1+1 Modular Redundant |
| Main Features |
| L1, L2 Features |
IEEE 802.3(10Base-T), IEEE 802.3u(100Base-TX), IEEE 802.3z(1000BASE-X)
IEEE 802.3ab(1000Base-T), IEEE 802.3ae(10GBase), IEEE802.3x
IEEE 802.3ak(10GBASE-CX4)
IEEE 802.3ba
|
| 12k Jumbo FramePort Loopback DetectLLDP and LLDP-MEDUDLD802.3ad LACP, max 128 group trunks with max 8 ports for each trunkLACP Load Balance |
|
N:1 Port Mirroring
RSPAN(Remote mirroring)
ERSPAN
|
|
IEEEE802.1d(STP)
IEEEE802.1w(RSTP)
IEEEE802.1s(MSTP)
Root Guard
BPDU Guard
BPDU Tunnel
|
|
802.1Q, 4096 acive VLAN, VLAN-trunking
MAC VLAN, VOICE VLAN, PVLAN(Private VLAN), Protocol VLAN, Multicast VLAN
QinQ, Selective QinQ, Flexible QinQ
GVRP
N:1 VLAN Translation
Broadcast / Multicast / Unicast Storm Control
|
| IGMP v1/v2/v3 Snooping and L2 QueryND SnoopingMLDv1/v2 Snooping |
|
Port Security, MAC limit
|
| Flow control: HOL, IEEE802.3xBandwidth Control |
| MRPP, ERPS with multiple rings |
| L3 Features |
Static Routing, RIPv1/v2, OSPFv2, BGP4OSPFv3, BGP4+OSPF Multiple ProcessLPM RoutingPolicy-based Routing (PBR) for IPv4 and IPv6VRRPURPF,ECMPBFD |
| IGMP v1/v2/v3, IGMP Proxy,DVMRP, PIM-DM, PIM-SM, PIM-SSM, any cast RP, MSDPStatic Multicast RouteMulticast Receive ControlIllegal Multicast Source Detection |
| ARP Guard, Local ARP Proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP LimitAnti ARP Cheat, Anti ARP Scan |
| DNS Client |
| GRE Tunnel |
| IPv6 |
6to4 Tunnel, Configured Tunnel, ISATAP Tunnel, GRE TunnelICMPv6, ND, DNSv6IPv6 LPM Routing, IPv6 Policy-Based Routing (PBR)IPv6 VRRPv3, IPv6 URPF, IPv6 RARIPng, OSPFv3, BGP4+MLD Snooping, IPv6 multicast VLANMLDv1/v2, PIM-SM/DM for IPv6, IPv6 Anycast RP, IPv6 ACL, IPv6 QOS |
| MPLS |
MPLS, VRF, LDP |
| MPLS L3 VPN, MPLS L2 VPN(VPLS), VPWS |
| QoS |
8 Queues SWRR(SP+WRR), SP, WRR, DWRR, SDWRR, WREDTraffic Classification Based on 802.1p CoS, ToS, DiffServ DSCP, ACL, port numberTraffic ShapingPRI Mark/Remark |
| ACL |
IP ACL, MAC ACL, IP-MAC ACLStandard and Expanded ACL Based on source/destination IP or MAC, IP protocol, TCP/UDP port, DSCP, ToS, IP Precedence), VLAN, Tag/Untag, CoSREDIRECT and accounting-based ACLRules can be configured to port, VLANTime ranged ACL |
| Security |
802.1x AAAPort, MAC based authenticationAccounting based on time length and trafficGuest VLAN and Auto VLAN |
| RADIUS for IPv4 and IPv6, TACACS+ for IPv4 and IPv6 |
| DoS Attack prevention,IP/MAC Spoofing,DHCP Request Flood,CPU Protection,ICMP Attack Protection |
| MAB |
| DHCPv4/v6 |
DHCP Server/Client for IPv4/IPv6DHCP Relay/Option 82DHCP Snooping/Option 82 |
| Traffic Monitor |
sFlow Traffic Analysis |
| Security Network Management |
CLI, WEB, Telnet, Multiple level user, SNMPv1/v2c/v3 through IPv4 and IPv6Syslog and external Syslog serverHTTP SSLSNMP MIB, SNMP TRAPFTP/TFTPSNTP/NTPRMON 1,2,3,9Authentication by radiusSSH v1/v2Dual firmware images/ Configuration files802.3ah OAM, 802.1ag OAM |
| Data Center Features |
VSF (Virtual Switch Framework) for stacking
|
